產品關鍵字：包覆紗,氨綸機,氨綸橡筋雙包,馬尾巴包覆絲
產品分類：紗線,化纖紗線
產品編號：XLJ205-B

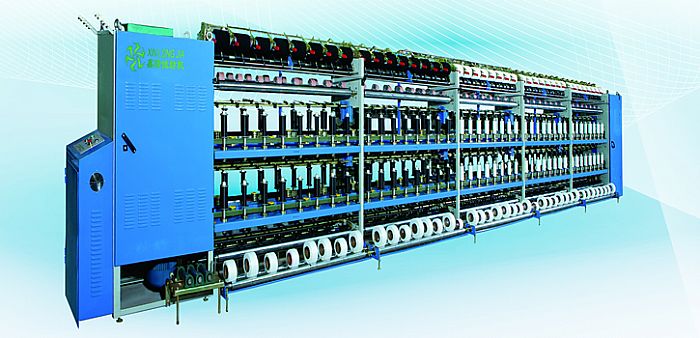

XLJ205-B 高速包覆絲機/ XLJ205-B Yarn Covering Machine
Spandex yarn covering machine
Metallic yarn covering machine (MH/MX)
用途：XLJ205- B 包覆絲機適用于氨綸絲為芯絲,滌綸,棉綸,棉紗為外包紗單雙包覆機生產,特別適用于芯絲為20D-100D,外包紗12D-300D包覆機。
Ues: XLJ205 – B Yarn covering machine is used for the single and double covering production of covered yarn with spandex as the core yarn. Especially for 20 D-100D as core yarn and 12D-300D as outer covering yarn. And it can also used for the single and double covering with metallic yarn covering.
技術參數/ Technical Specifications
|
型式/Type |
雙面雙層/Two sides and Two layers |
|
外型尺寸Size(mm) L×W×H |
16700×1400×2100 |
|
全機總功率KW Total power (kw) |
13 |
|
錠數Spindle Number |
256/192 |
|
機械定速r/min Mechanical Spindle Speed (r/min) |
9000 ～ 22000 |
|
包覆捻度范圍 T/M Range Of Covering Twist Number(T/M) |
200 ～ 3000 |
|
捻向 Twist Direction |
S 或者 Z S or Z |
|
外包絲筒子尺寸 Covering Fiber Bobbin Size |
Φ84×Φ36×140 |
|
芯紗牽伸范圍 Range Of Max. Stretching (Times) |
1.6 ～ 4.5 |
|
外包絲容量Capacity Of Covering Fiber |
750 |
|
卷取成型方式Take-Up Forming Mode |
機械成型 Mechanically Forming |
